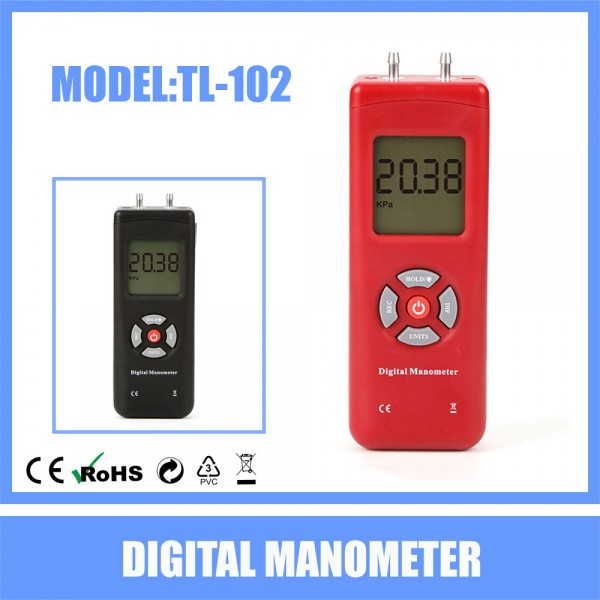

Description

Features:

1.11 selectable units of Measurement

2.Differential pressure measurement

3.Max / minimum / Average reading record function

4.Data hold function

5.Large LCD with backlight

6.Zeroing, offset, and data compensation

7.Low battery alarm

8.Auto power off settup function

9.Over range indicator



Specifications:

1.Pressure Range:±10psi

2.Accuracy:±0.3% FSO (at 25^oC)

3.Repeatability:±0.2% (Max±0.5%FSO)

4.Linearity/Hysteresis:±0.29% FSO

5.Response Time:0.5sec

6.Over Range Indicator:Hi

7.Under Range Indicator:Lo

8.Operating Conditions:0 to 50^oC(32 to 122^oF)

9.Storage Conditions:-10 to 60^oC (14 to 140^oF)

10.Power supply:9V battery

11.Dimension165 X 80 X 45mm

11.Weight:220g(battery included)

Function	Range	Resolution	Function	Range	Resolution
kPa	68.94	0.01	inHg	20.36	0.01
Psi	10	0.01	mmHg	517.1	0.1
Kgfcm2	0.703	0.001	InH2O	276.7	0.1
Ozin2	160	0.01	FtH2O	23.06	0.01
Bar	0.689	0.001	cmH2O	703	0.1
Mbar	689.4	0.1
