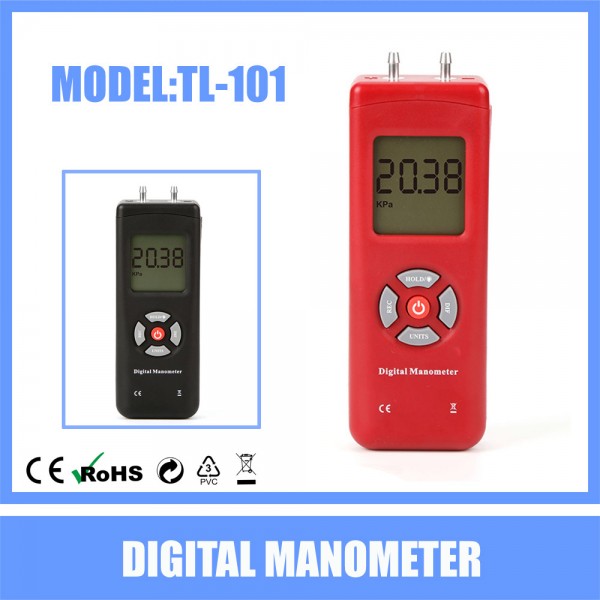

Description

Features:

1.11 selectable units of Measurement

2.Differential pressure measurement

3.Max / minimum / Average reading record function

4.Data hold function

5.Large LCD with backlight

6.Zeroing, offset, and data compensation

7.Low battery alarm

8.Auto power off settup function

9.Over range indicator



Specifications:

1.Pressure Range:±5psi

2.Accuracy:±0.3% FSO (at 25^oC)

3.Repeatability:±0.2% (Max±0.5%FSO)

4.Linearity/Hysteresis:±0.29% FSO

5.Response Time:0.5sec

6.Over Range Indicator:Hi

7.Under Range Indicator:Lo

8.Operating Conditions:0 to 50^oC(32 to 122^oF)

9.Storage Conditions:-10 to 60^oC (14 to 140^oF)

10.Power supply:9V battery

11.Dimension165 X 80 X 45mm

11.Weight:220g(battery included)

Function	Range	Resolution	Function	Range	Resolution
kPa	34.47	0.01	inHg	10.18	0.01
Psi	5	0.001	mmHg	258.5	0.1
Kgfcm2	0.351	0.001	InH2O	138.3	0.1
Ozin2	80	0.01	FtH2O	11.53	0.01
Bar	0.344	0.001	cmH2O	351.5	0.1
Mbar	344.7	0.1
